3PUMP Non-Listed Fire Pump Package – 500 GPM @ 8 Bar

Electric driven pump + diesel driven pump + jockey pump

500 GPMRated Flow 8 BarRated Pressure
Download Technical Submittal Request a Quote
3PUMP Non-Listed Fire Pump Package

Overview

Package overview

Electric driven pump + diesel driven pump + jockey pump

Electric driven pump + diesel driven pump + jockey pump package rated at 500 GPM @ 8 Bar.

Rated flow 500 GPM
Rated pressure 8 Bar
Package Electric driven pump + diesel driven pump + jockey pump
Listing status Non-Listed / Non-UL
Main pump model 3P 4×3-10.2
Electric motor 75 HP
Diesel engine 4102
Jockey pump RV10-10
Source document 3PUMP 500GPM8BAR-Non Listed.pdf

Package Components

Electric, diesel, jockey, controls, and accessories

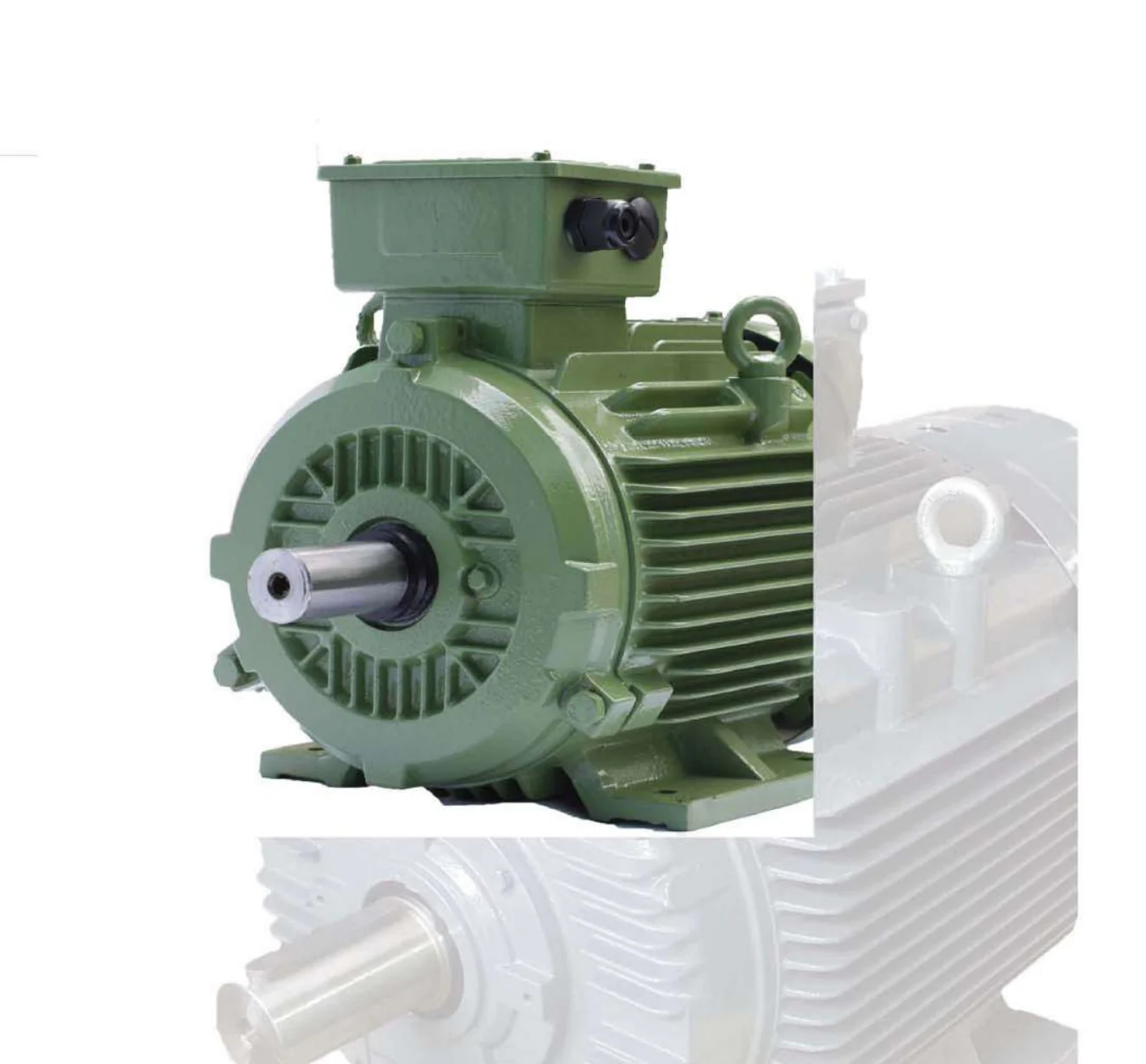

Electric motor used with the 500 GPM @ 8 Bar fire pump package.

Electric driven pump

Pump model
3P 4x3-10.2
Capacity
500 GPM
Head
8 Bar

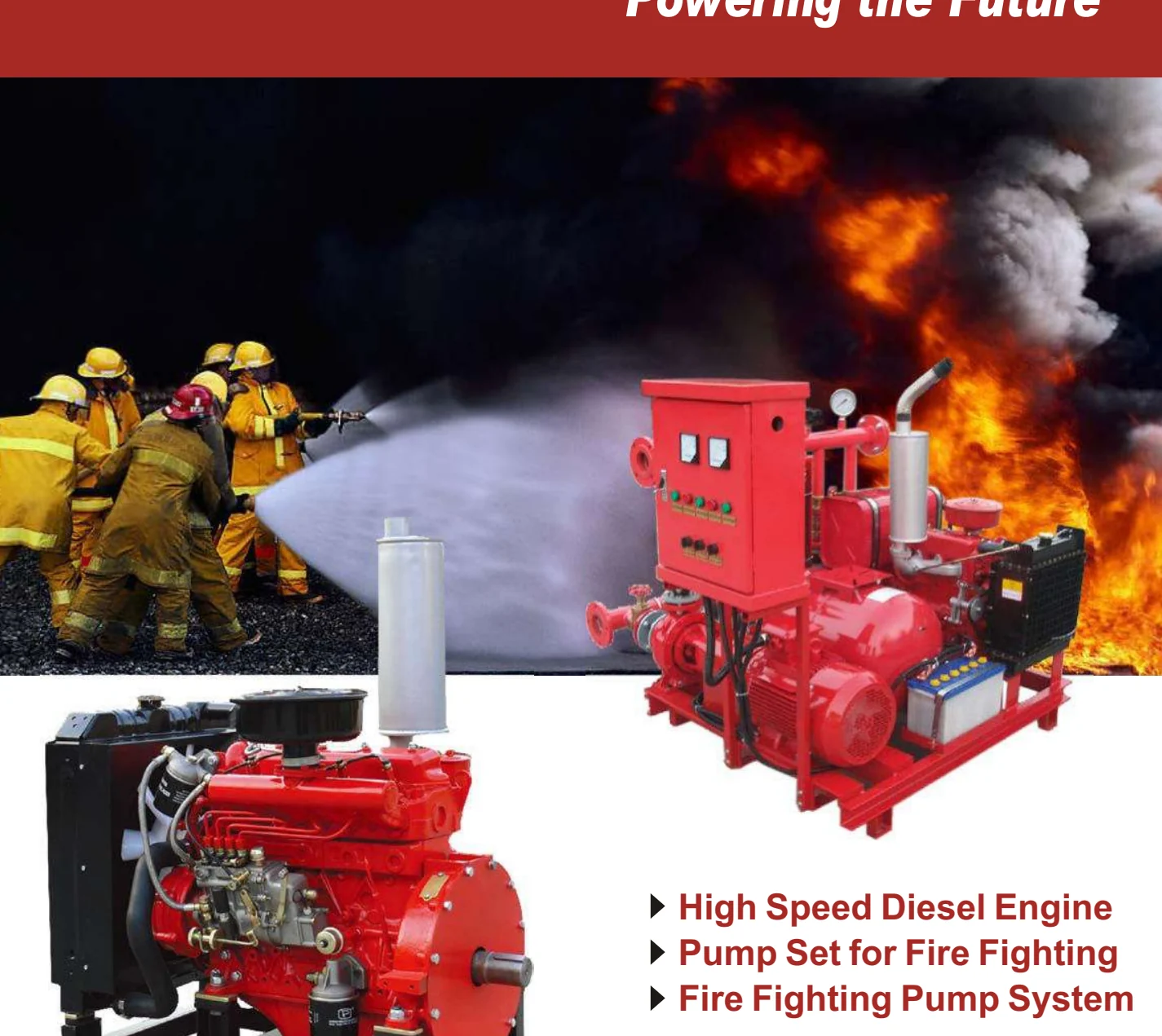

Diesel driven fire pump visual for 500 GPM @ 8 Bar.

Diesel driven pump

Pump model
3P 4x3-10.2
Engine model
4102
Power
84 HP

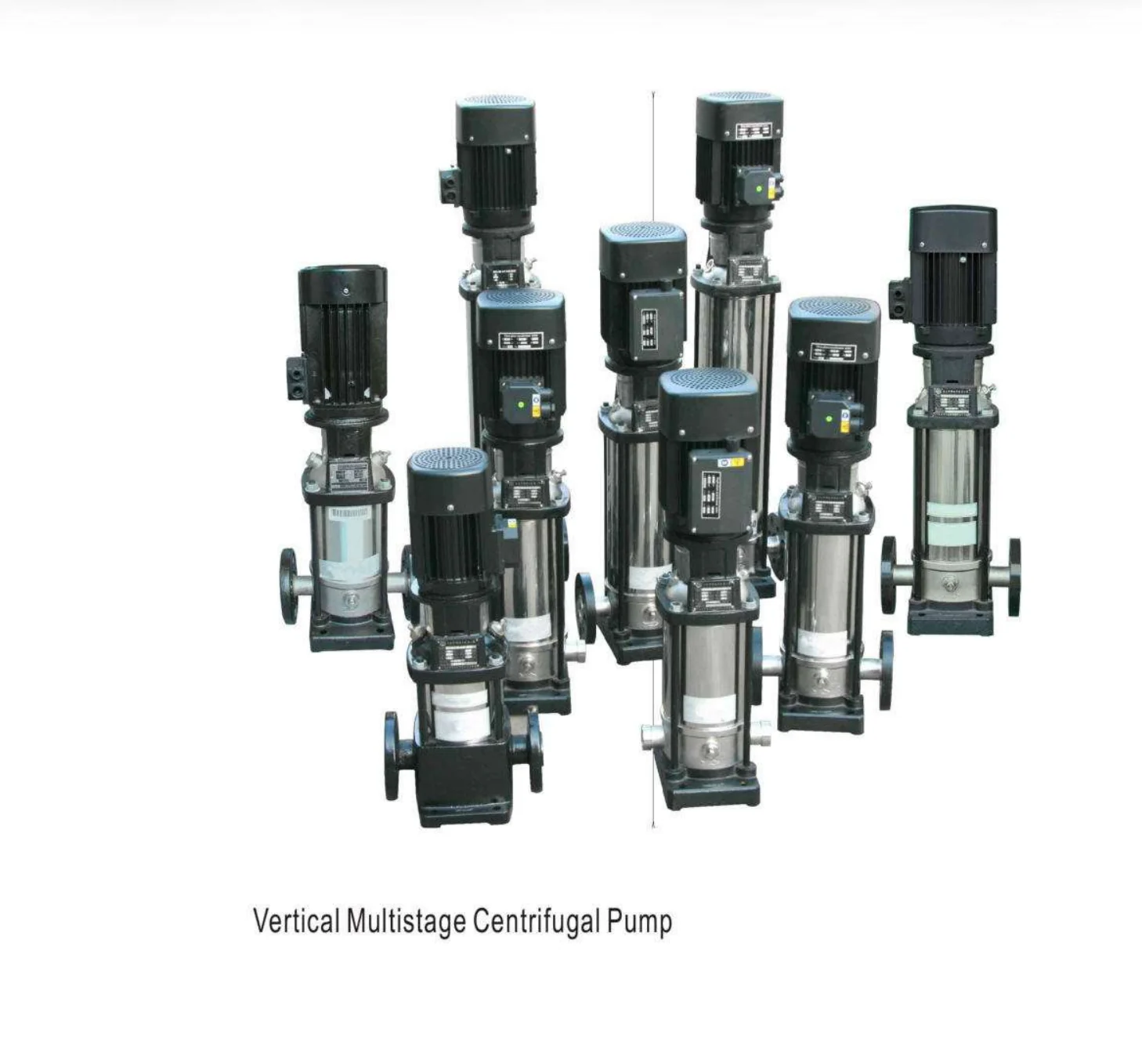

Jockey pump visual for the 500 GPM @ 8 Bar package.

Jockey pump

Model
RV10-10
Capacity
40 GPM
Pressure
8.5 Bar

Controllers

Quantity
3 individual controllers
Brand
LS
Origin
Made in Korea

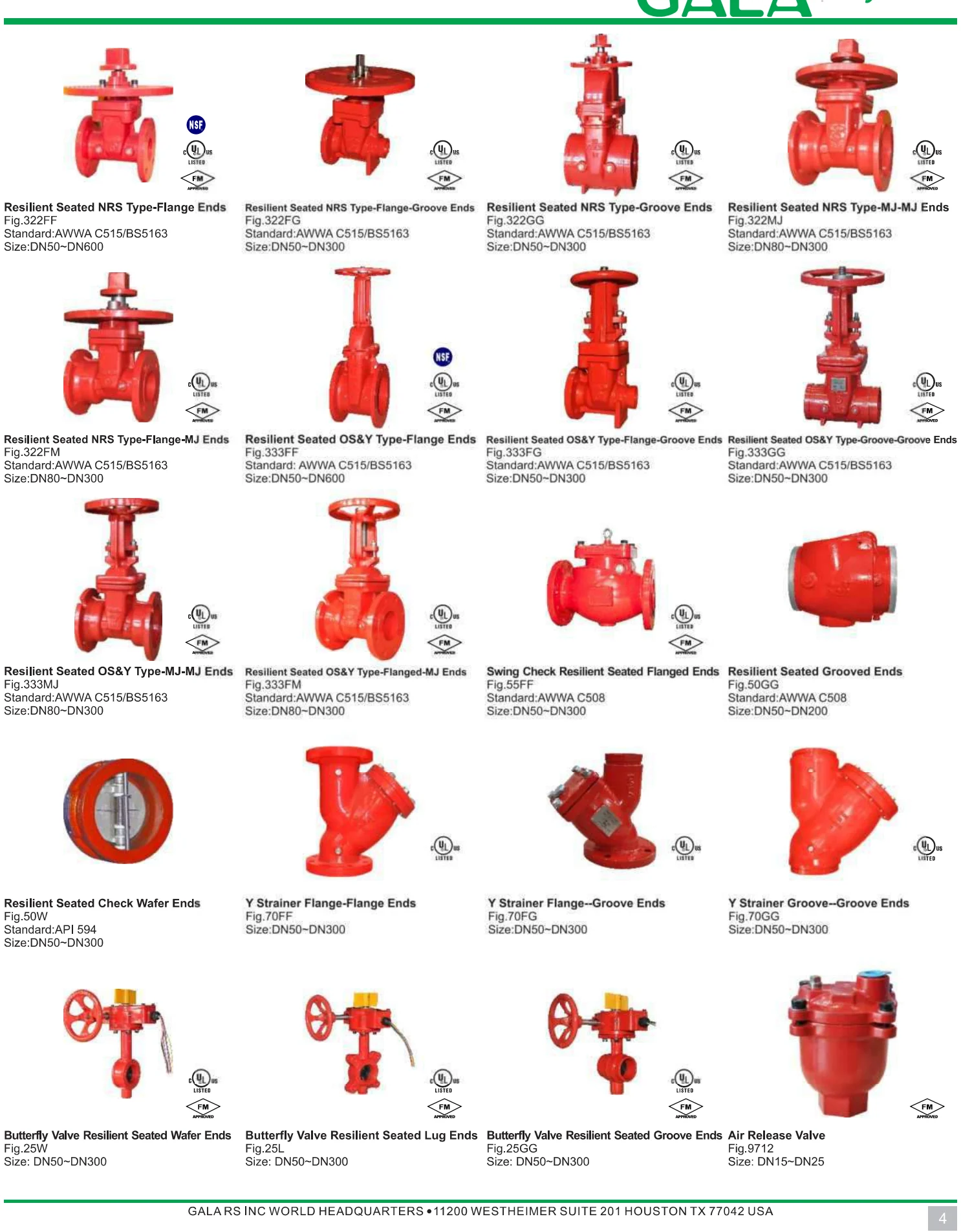

Valve and accessory lineup referenced by the 500 GPM @ 8 Bar package.

Valves and accessories

Pressure switch
Pacific
Valve brands
ONTOR / GALA

Technical Specifications

Source-backed product fields

Package

Rated flow 500 GPM
Rated pressure 8 Bar
Configuration Electric driven pump + diesel driven pump + jockey pump
Standard NFPA Performance
Listing status Non-Listed / Non-UL

Main Pump

Model 3P 4x3-10.2
Type End Suction
Capacity 500 GPM
Head 8 Bar
Casing Cast iron
Impeller Bronze
Shaft Stainless steel
Shaft seal Mechanical seal
Speed 2970 RPM

Electric Motor

Brand INTEM
Model 225M-2
Power 75 HP
Voltage 415V
Frequency 50Hz
Phase 3PH
Speed 2970 RPM
Insulation Class F
Protection IP55

Diesel Engine

Diesel pump model 3P 4x3-10.2
Diesel pump flow 500 GPM
Diesel pump head 8 Bar
Engine brand POWER
Engine model 4102
Power 84 HP
Voltage 12V
Speed 3000 RPM

Jockey Pump

Model RV10-10
Capacity 40 GPM
Pressure 8.5 Bar
Power 4.0 kW
Frequency 50Hz
Materials Stainless steel impeller / shaft

Controllers

Quantity 3 individual controllers
Brand LS
Origin Made in Korea

Valves and Accessories

Pressure switch Pacific
Valve brands ONTOR / GALA

Technical Gallery

PDF-derived technical visuals

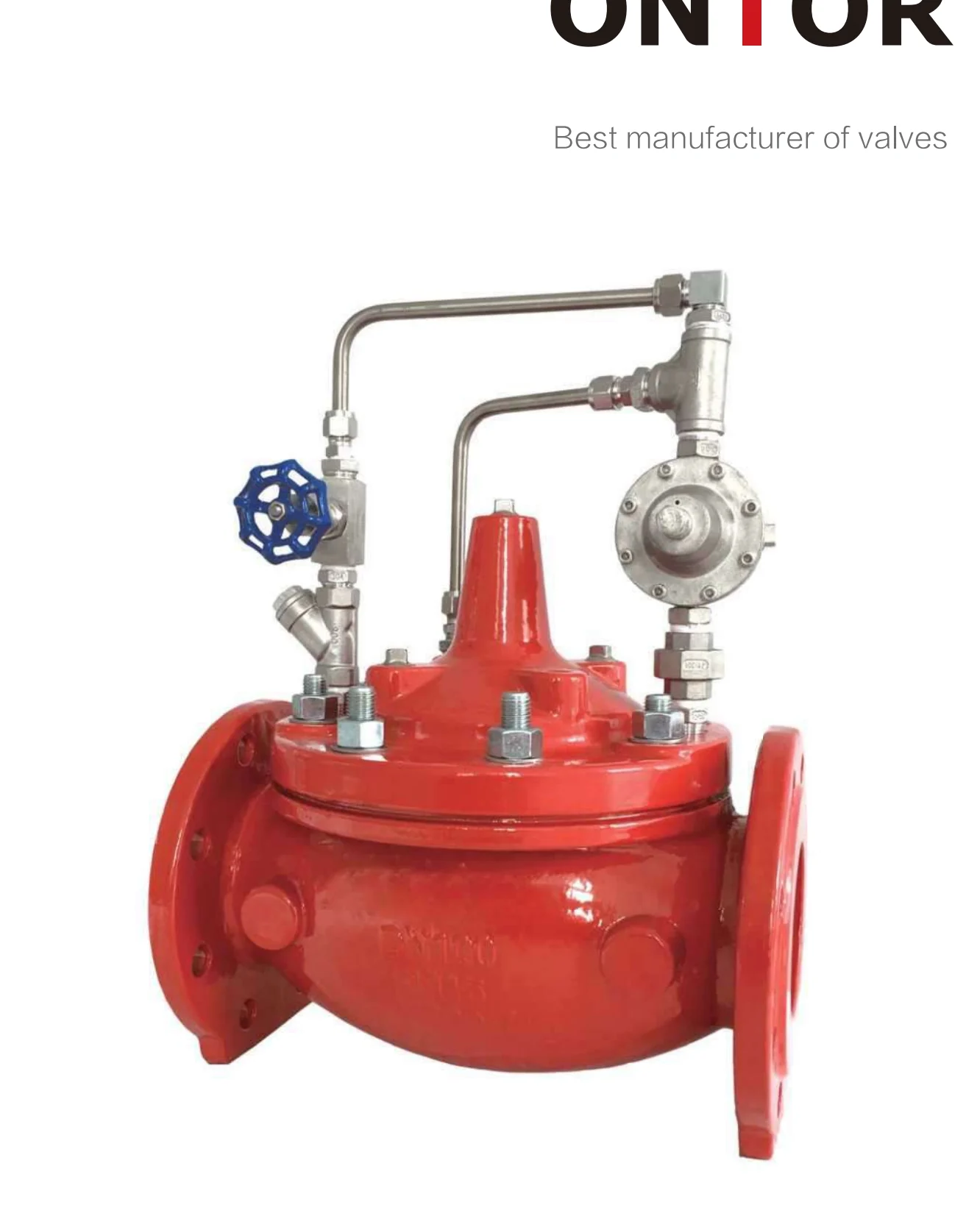

Pressure reducing valve visual from the source submittal.
Pressure reducing valve visual and dimensions. Source page 28

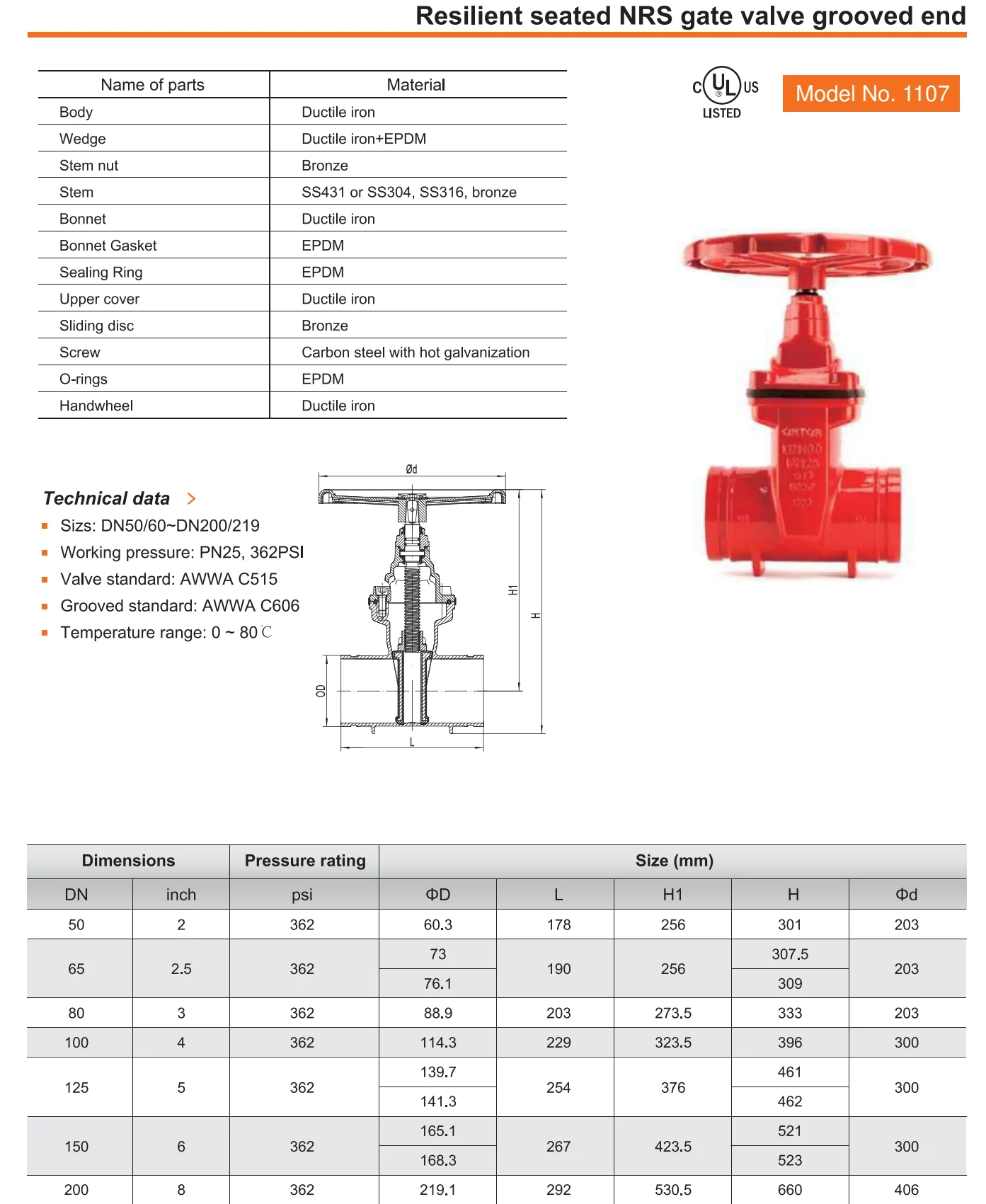

Grooved gate valve technical data from the source submittal.
Grooved gate valve image, materials, and technical data. Source page 30

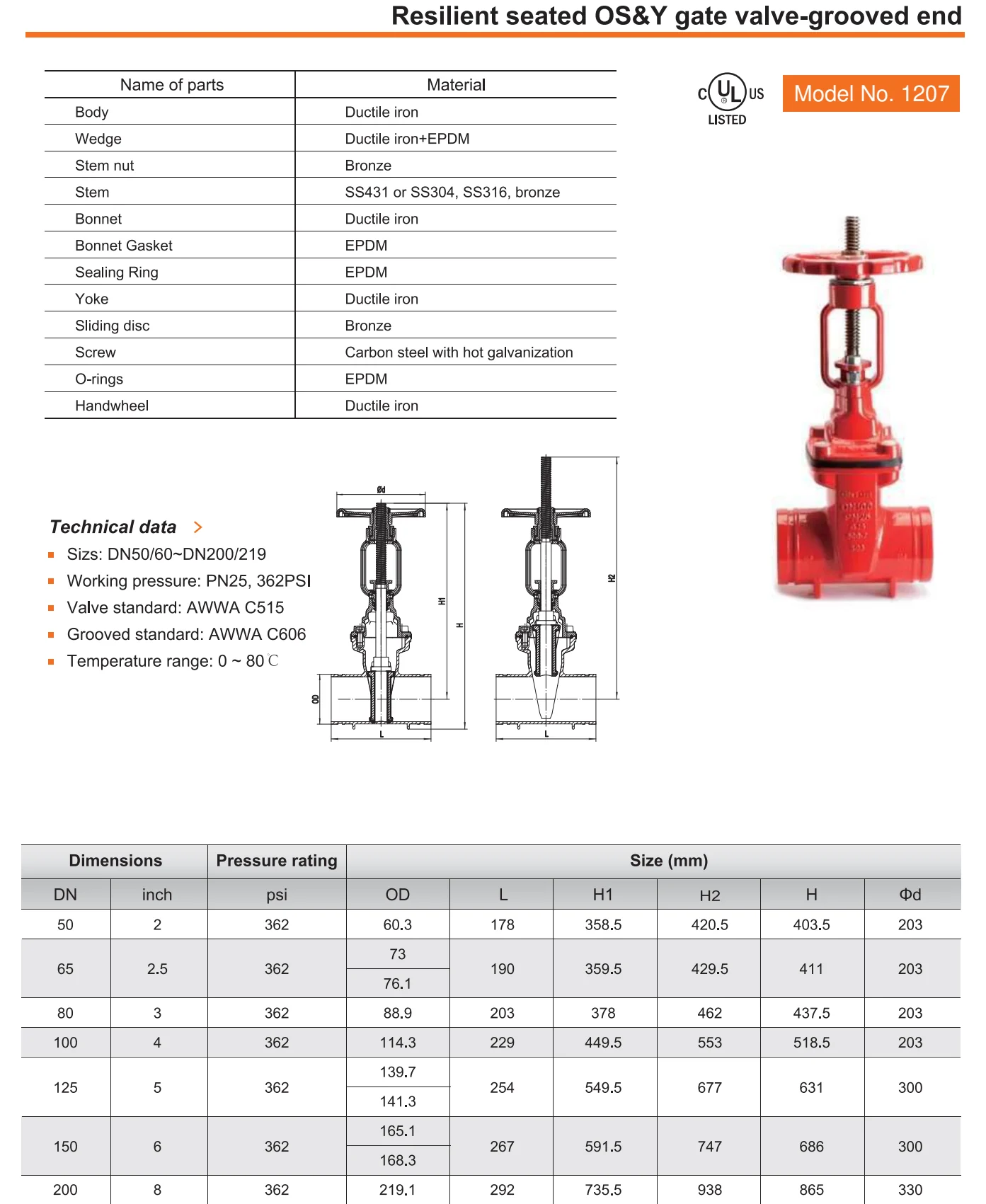

OS&Y gate valve technical data from the source submittal.
OS&Y gate valve image, section drawings, and technical data. Source page 31

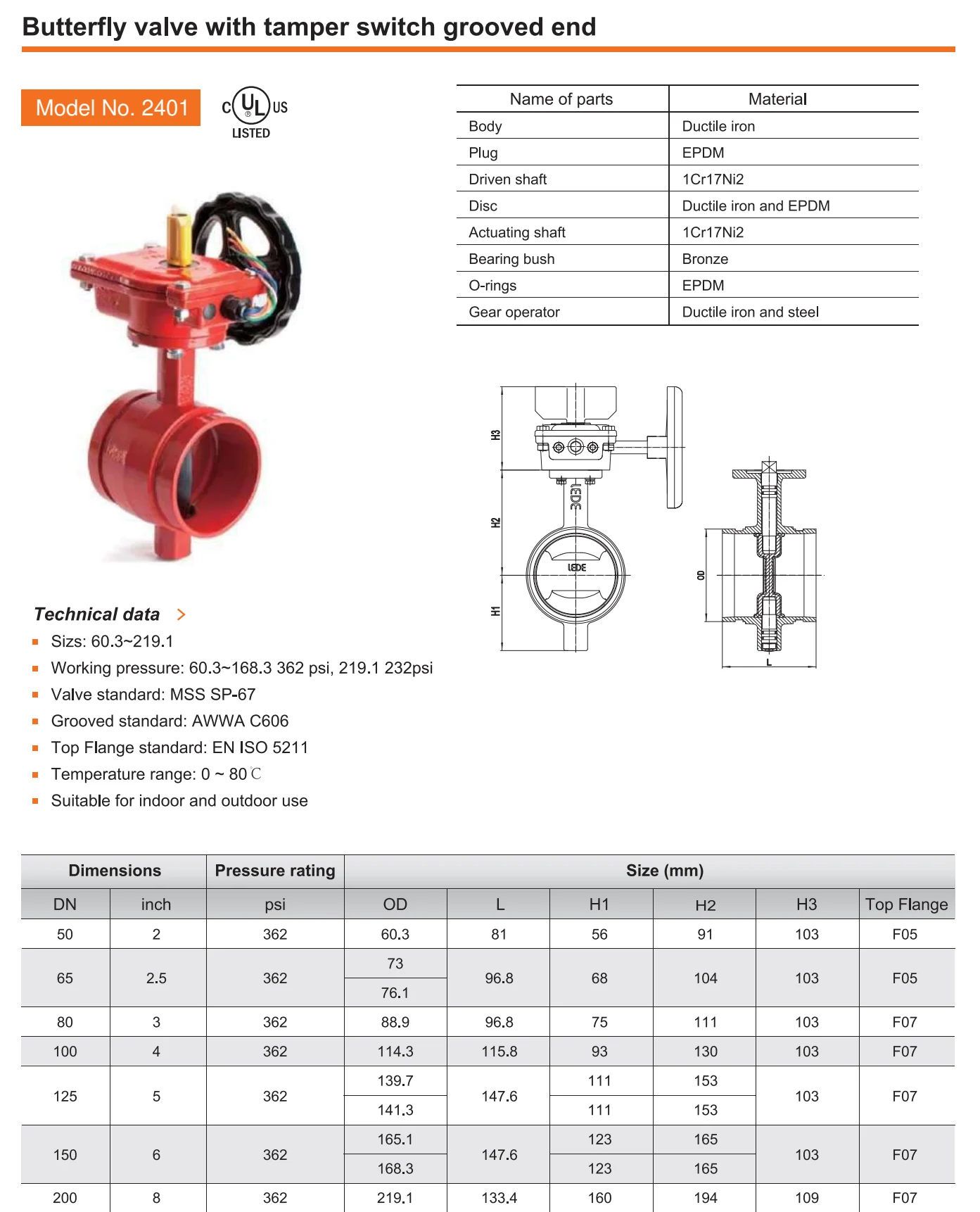

Butterfly valve with tamper switch from the source submittal.
Butterfly valve with tamper switch and technical data. Source page 32

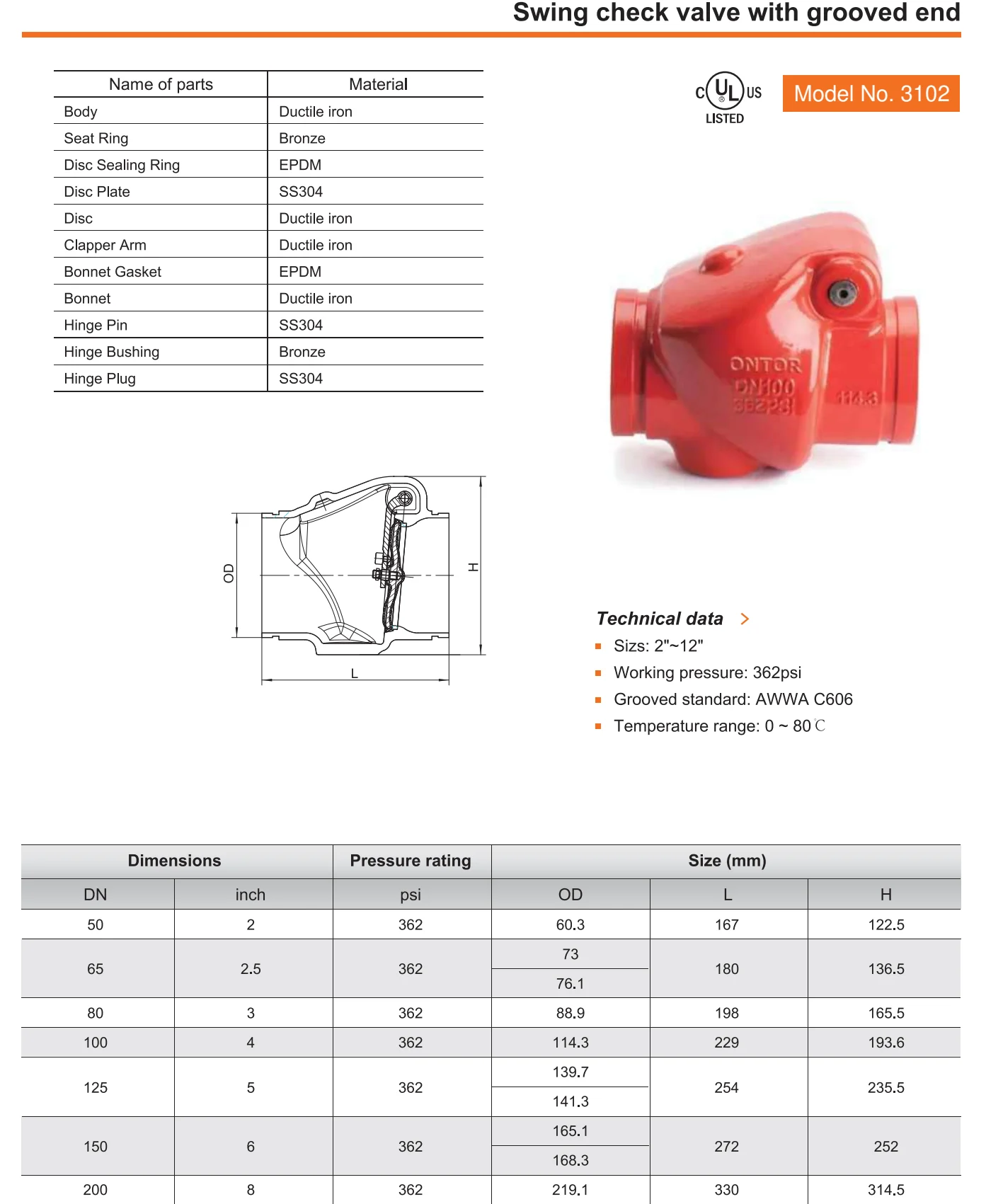

Swing check valve technical data from the source submittal.
Swing check valve image, sectional drawing, and technical data. Source page 33

Performance

Performance curves and verified notes

Shutoff pressure 9.42 Bar at 2950 RPM; 9.56 Bar at 3000 RPM
Pressure at 150% flow 7.00 Bar at 2950 RPM; 6.89 Bar at 3000 RPM
Notes Performance curves show PASS at 150% flow and shutoff.

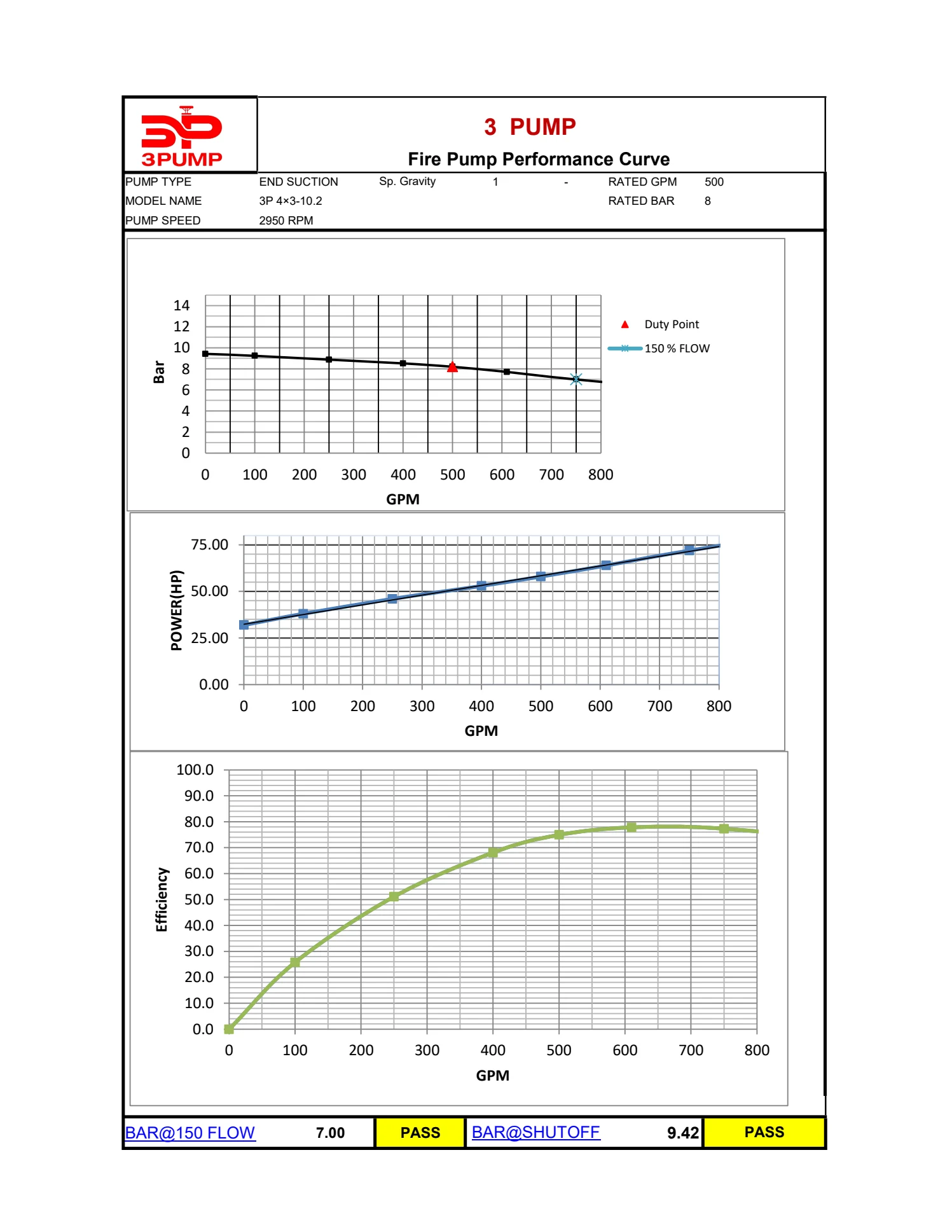

Performance curve for 3P 4x3-10.2 at 2950 RPM.
500 GPM @ 8 Bar main pump performance curve at 2950 RPM. Source page 5

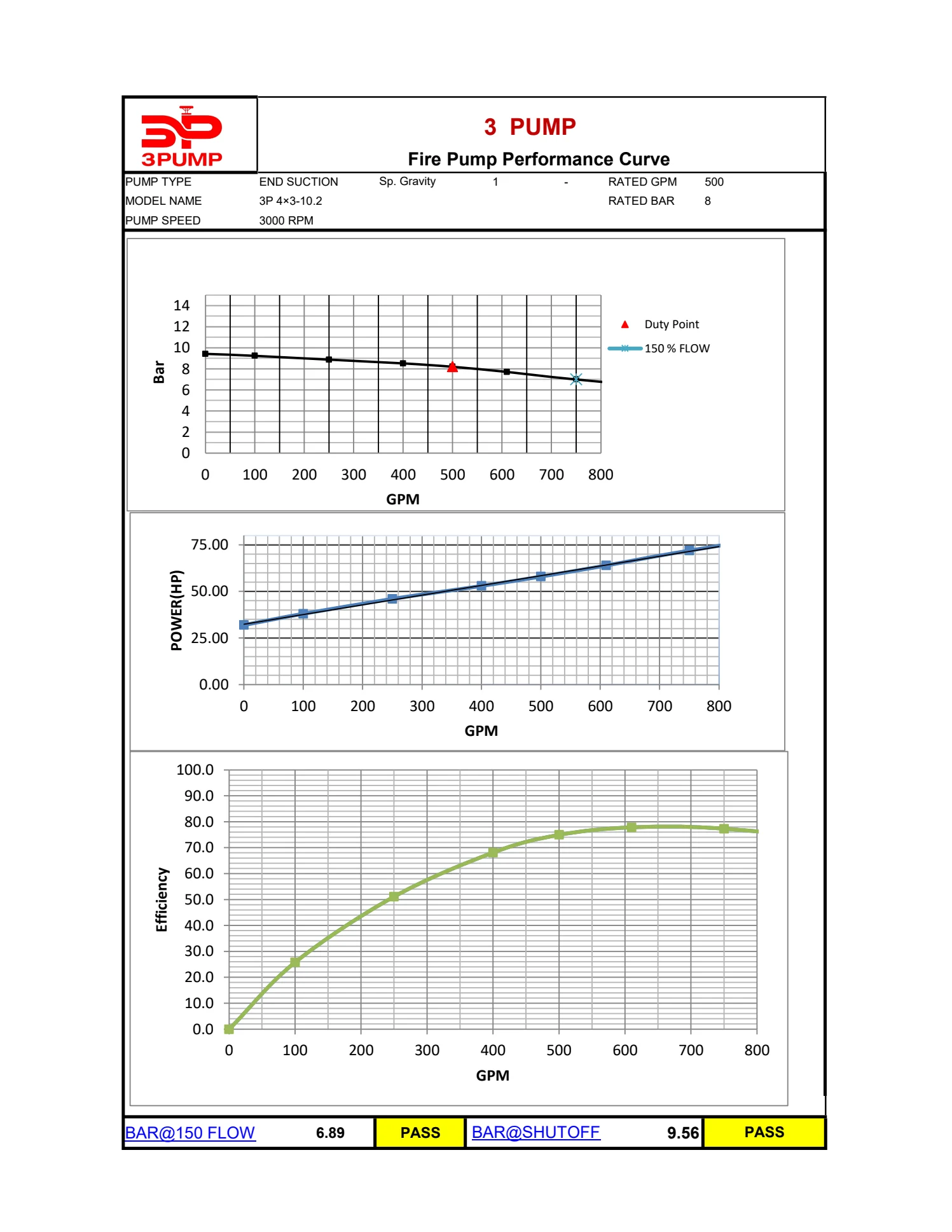

Performance curve for 3P 4x3-10.2 at 3000 RPM.
500 GPM @ 8 Bar main pump performance curve at 3000 RPM. Source page 6

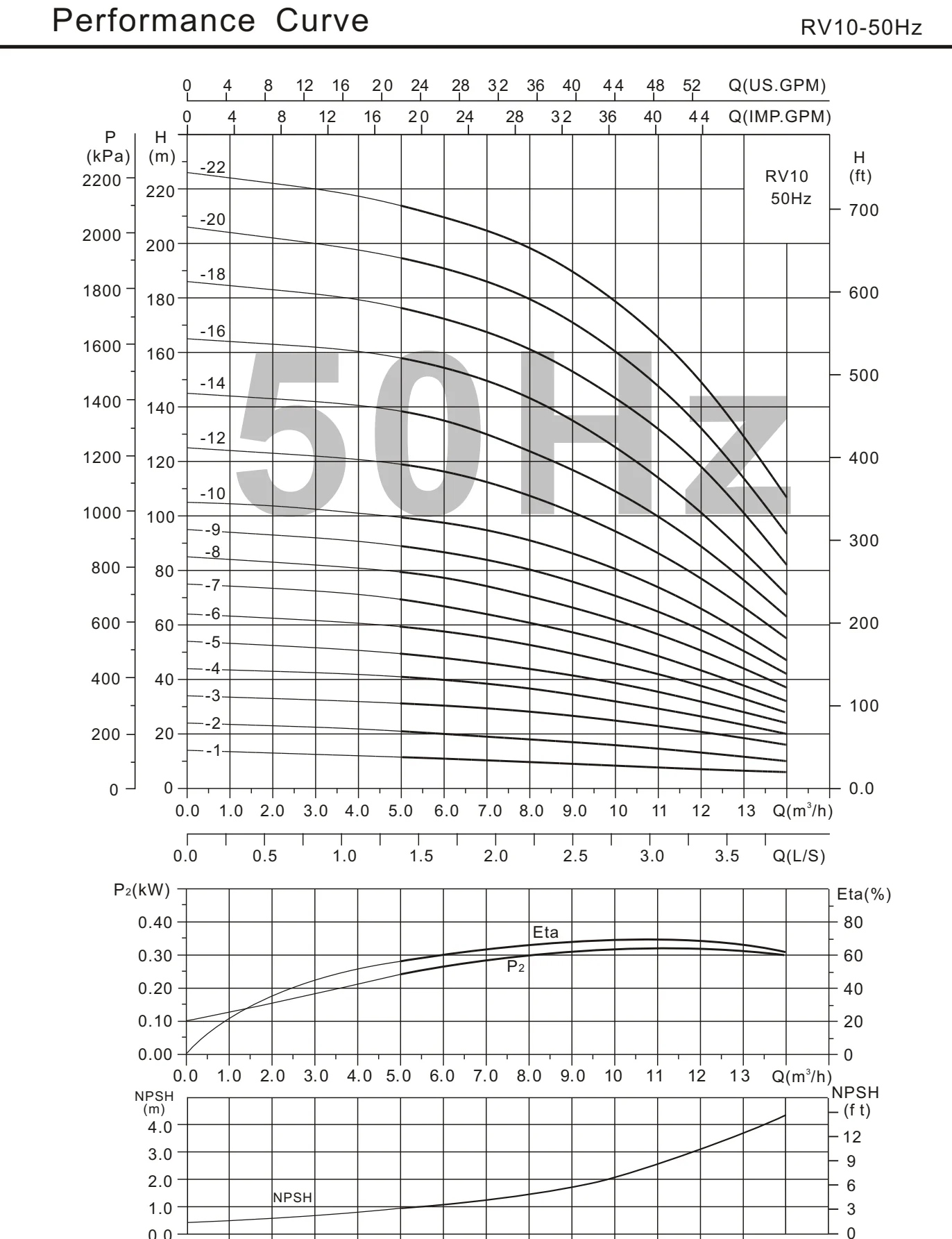

Jockey pump performance curve for RV10-10.
RV10-10 jockey pump performance curve. Source page 22

Drawings

Dimensional and technical diagrams

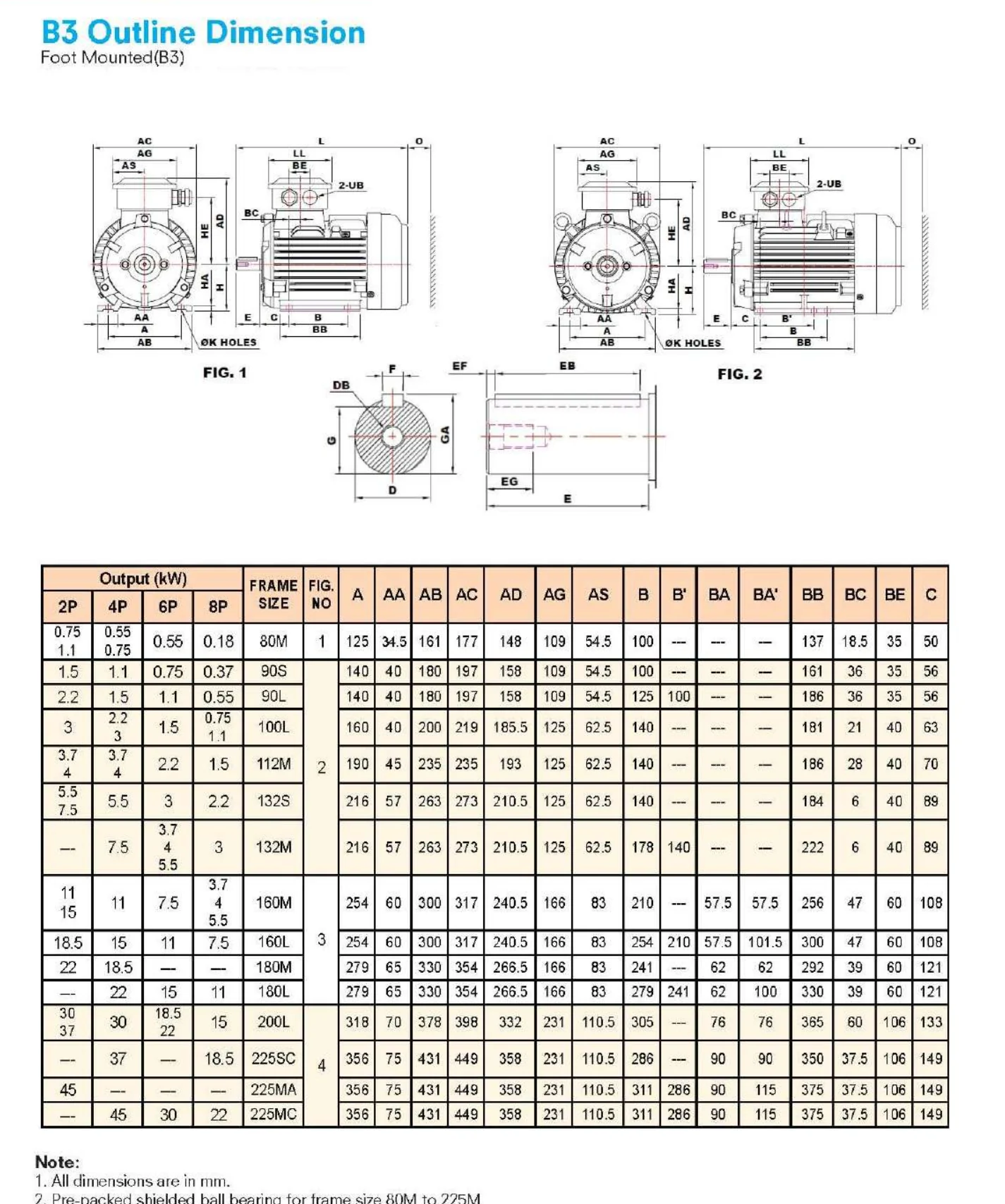

Dimensional drawing and table for the electric motor range.
Electric motor dimensional drawing and dimension table. Source page 12

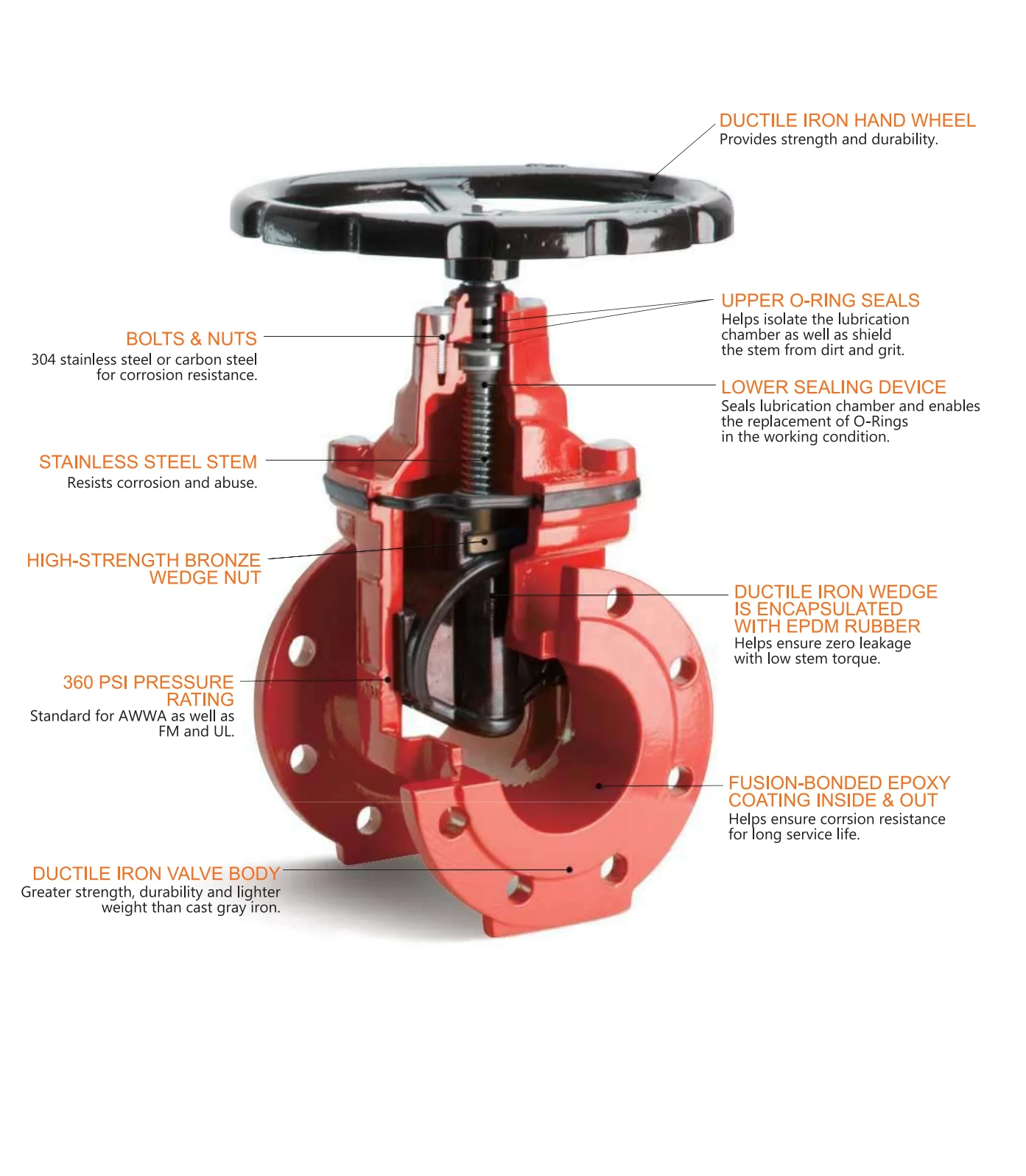

Sectional valve drawing from the source technical submittal.
Sectional valve drawing from the source submittal. Source page 34

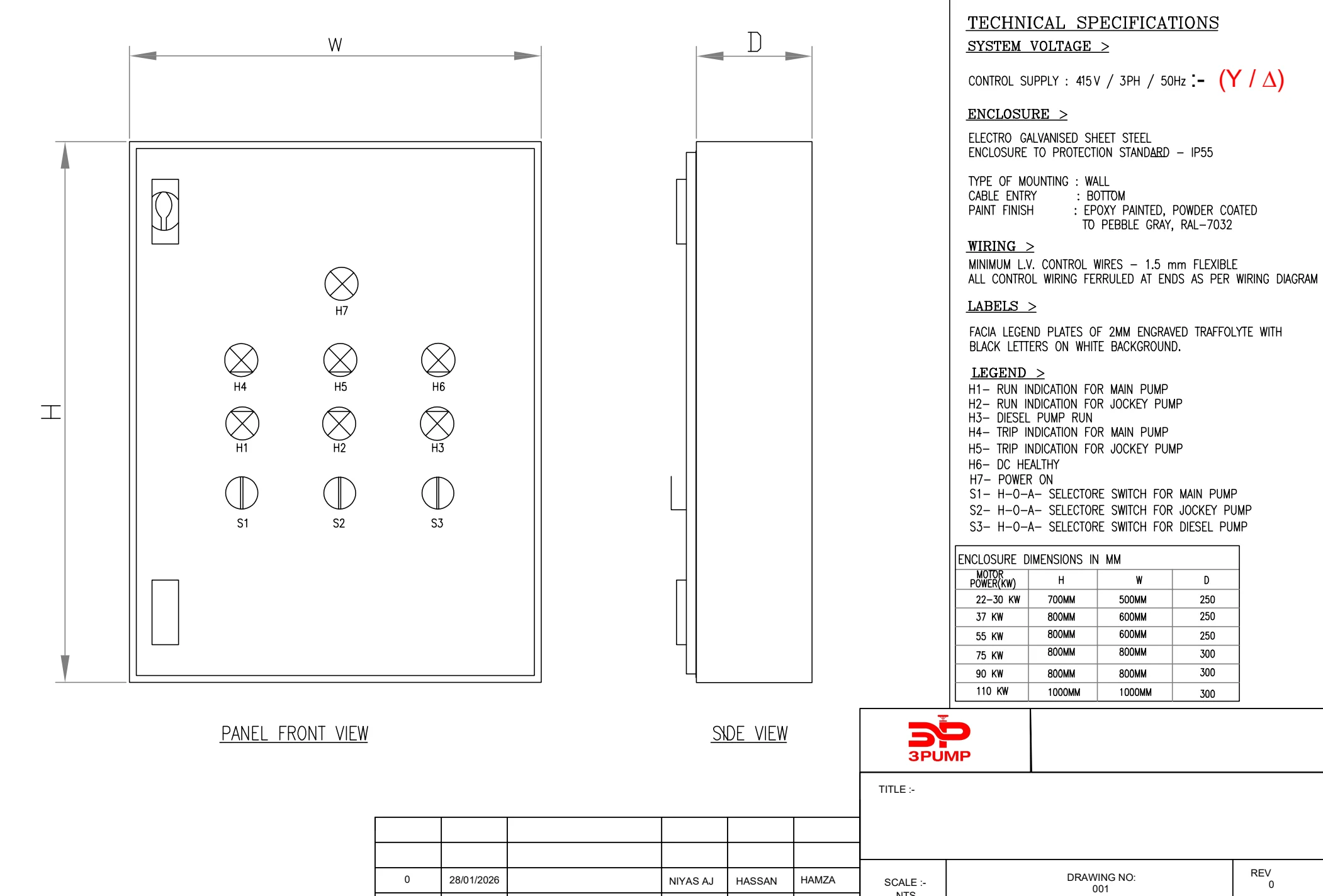

Pump controller panel drawing for the 500 GPM @ 8 Bar package.
Pump controller panel drawing and technical notes. Source page 36

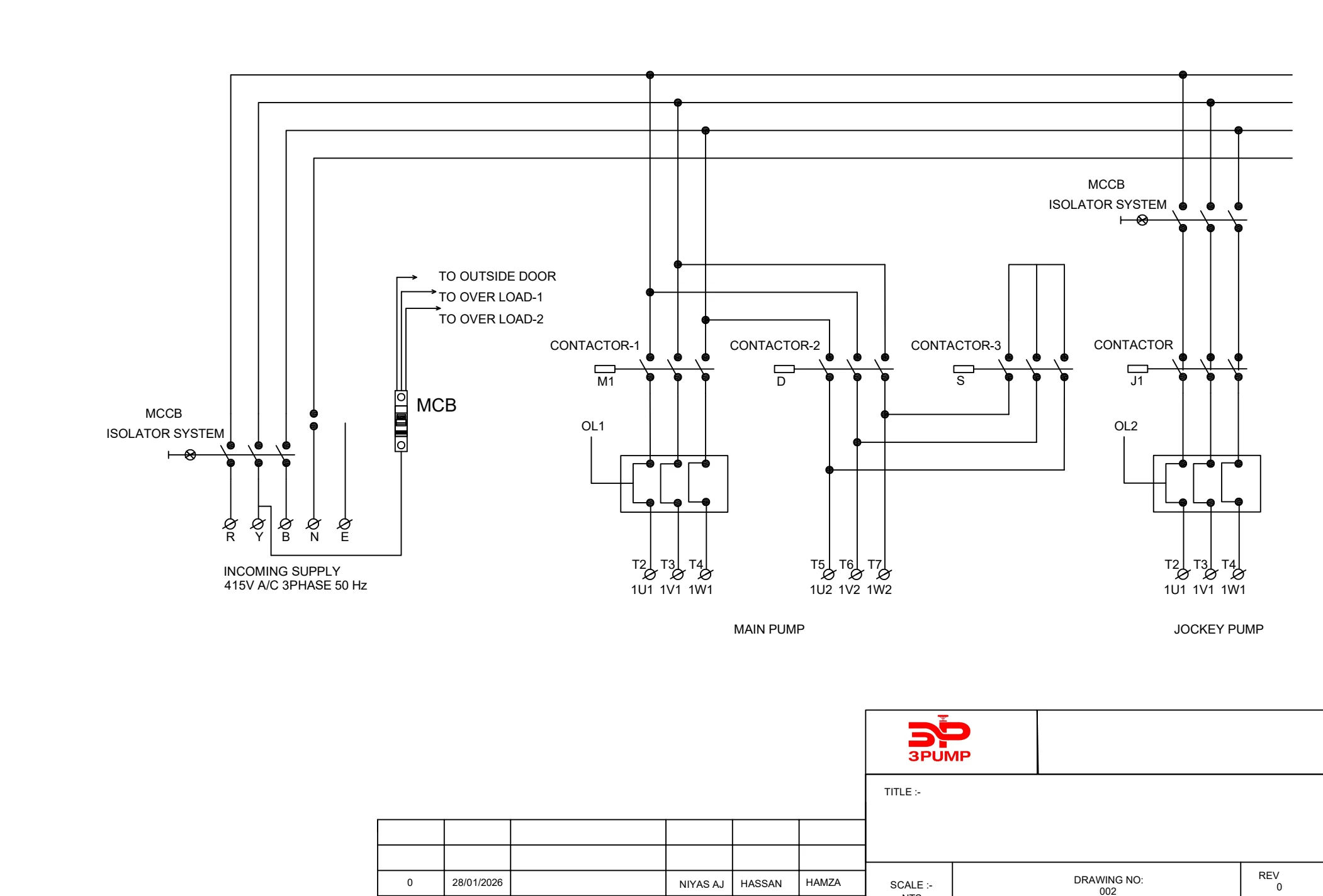

Main pump and jockey pump control wiring diagram.
Main pump and jockey pump control wiring diagram. Source page 37

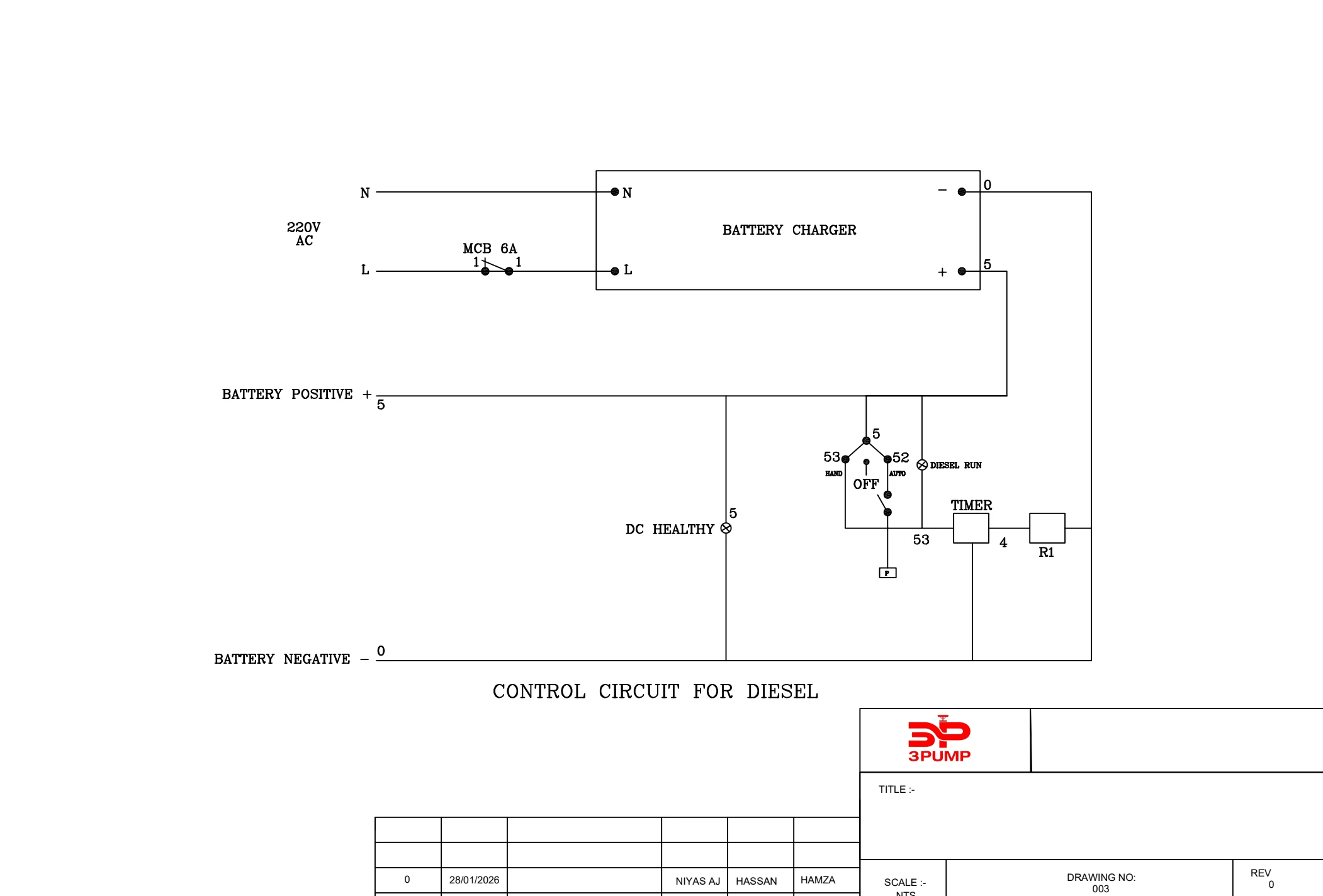

Diesel pump control circuit wiring diagram.
Diesel pump control circuit wiring diagram. Source page 38

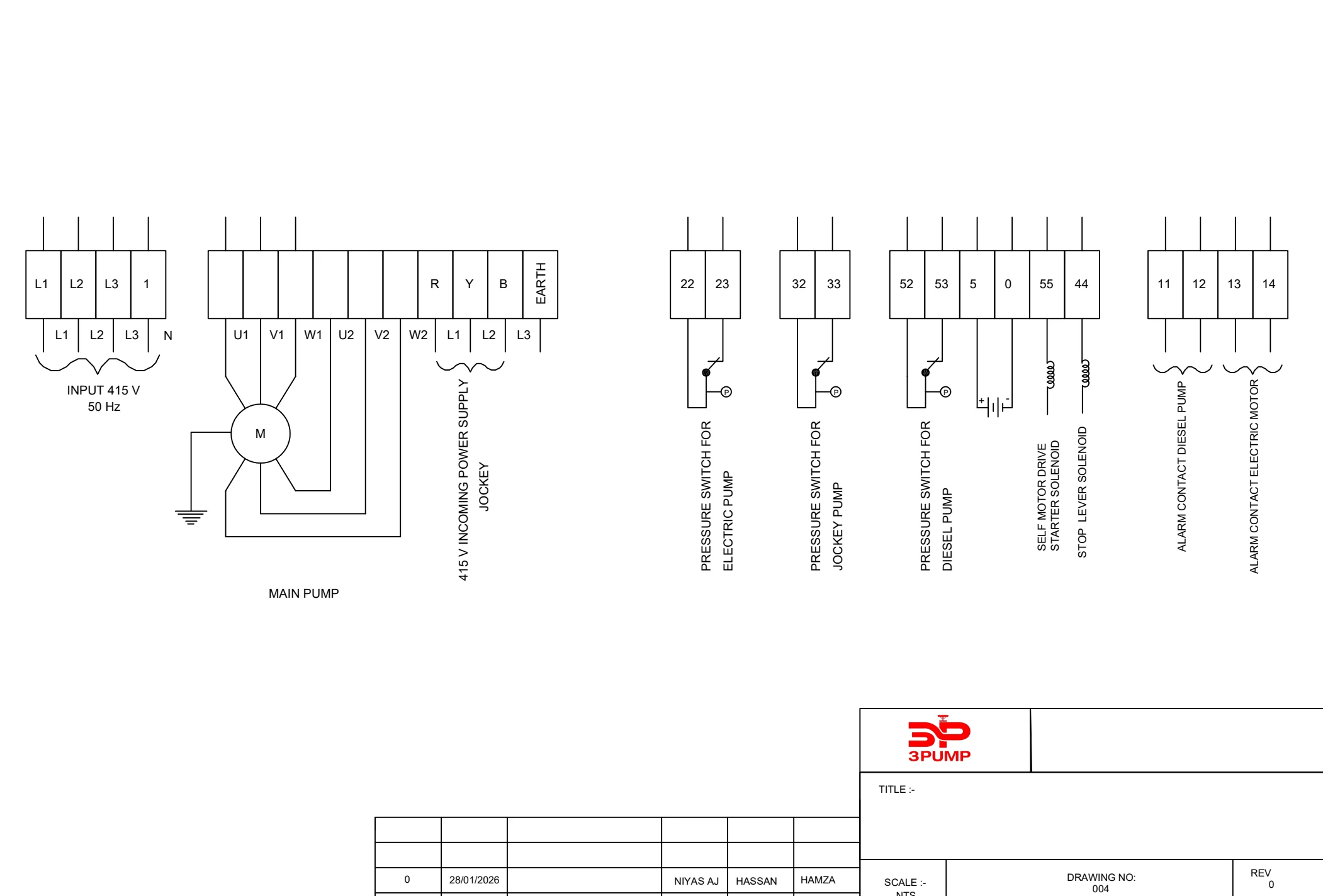

Field terminal and pressure switch wiring diagram.
Field terminal and pressure switch wiring diagram. Source page 39

Downloads

Full technical submittal PDF

File size: 4 MB

View PDF Download PDF
